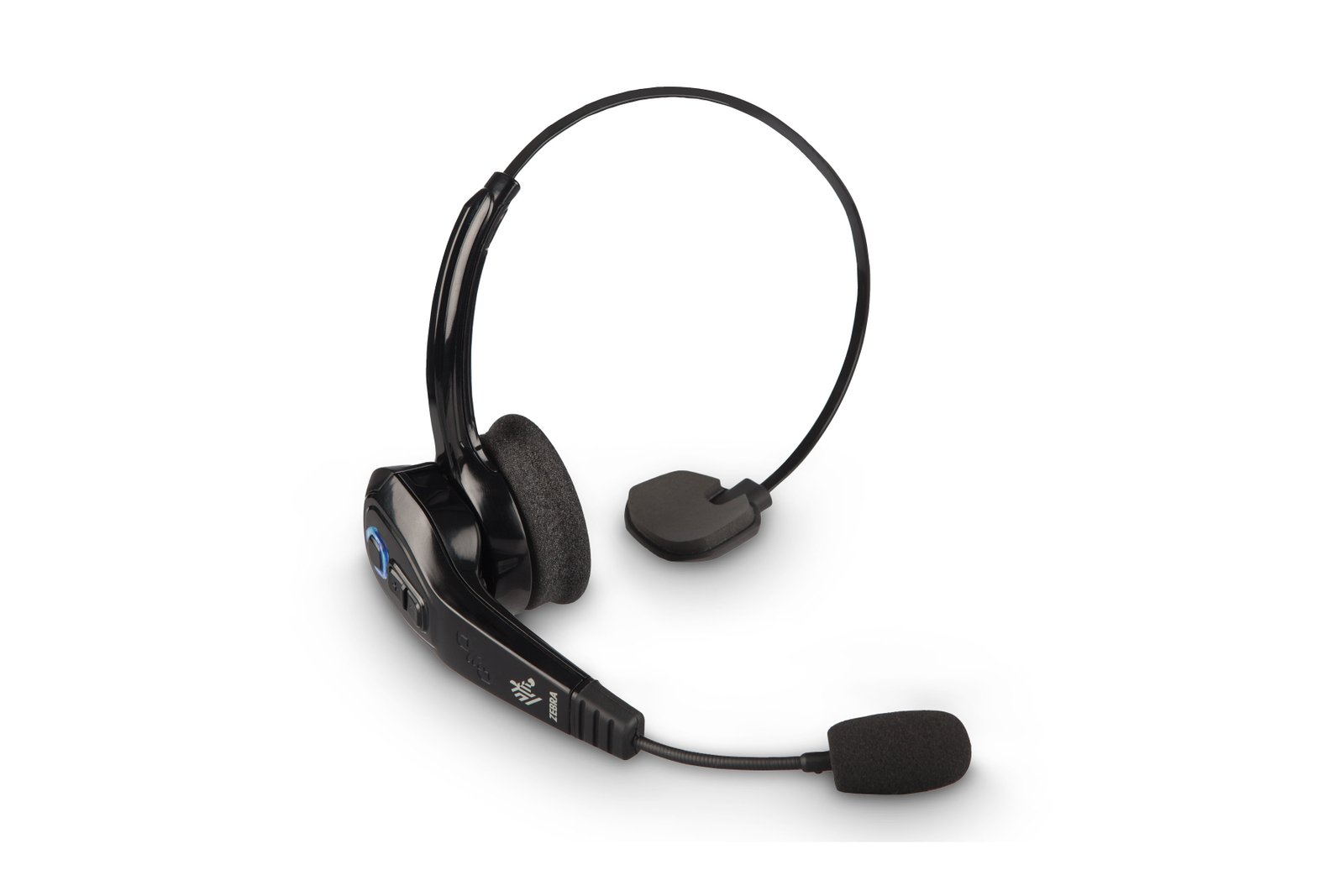

HS3100 Rugged Headset Series
Product Category : Mobile ComputersThe Sound Choice for a Superior Voice Experience
The HS3100 Bluetooth and HS2100 corded headsets are loaded with features that offer everything you need in an industrial headset.
Models: HS3100
Specifications
Physical Characteristics
| Weight | HS2100 corded model: 3.5 oz./98 g (without audio cable) HS3100 Bluetooth model: 4 oz./115 g (with battery) |
| Wearing Styles | • Over-the-head headband • Behind-the-neck headband |
| Field Replaceable Parts | HS2100: Headband, ear pad, windsock, headband pad, temple pad HS3100: Headband, battery, ear pad, windsock, headband pad, temple pad |
| Power | Applies to HS3100 only: Li-Ion 220 mAh, 3.7V with up to 15 hours of continuous speech use on a single charge using a battery with ≤ 100 charge/discharge cycles |
Performance Characteristics
| Speech-Directed Applications | Can work with all Zebra devices running speech recognition and text-to-speech engines for speech-directed applications |
| Audio | High performance sealed noise canceling microphone with noise immunity grater than 10 dB for high noise environments |
| Send Frequency Response | 50 Hz to 8 kHz |
| Microphone Sensitivity | -53dB @ 1kHz, 1Pa |
| Receive Frequency Response | 300 Hz to 6 kHz |
| Speaker Sensitivity | 89 dB SPL with 1.0Vrms @1 kHz |
| Bluetooth | Applies to HS3100 only: Bluetooth Class II, v 3.0; Bluetooth Hands-free Profile (HFP 1.6), HSP 1.2, A2DP profile |
| NFC | Applies to HS3100 only: NFC tag used for Tap-to-Pair |
User Environment
| Zebra Mobile Computers Compatibility | Please visit www.zebra.com/hsheadsets for the most current list of compatible mobile computers. |
| User Interfaces | HS2100: Two 3.5 mm audio jack sockets HS3100: LED: Bi-color LED for headset status Buttons: Three functional buttons |
| Operating Temp. | -30°C (-22°F) to +50°C (+122°F) |
| Storage Temp. | HS2100: -40°C (-40°F) to +70°C (+158°F) HS3100: -40°C (-40°F) to +60°C (+140°F) incl. battery -40°C (-40°F) to +70°C (+158°F) excl. battery |
| Sealing Rating | IEC 60529: IP67 |
| Humidity | 5% to 95% non-condensing |
| Drop Rating | 6 ft. /1.8 m drop to concrete (36 drops, over operating temperature range) |
| Tumble Rating | 1,000 tumbles @ 0.5 m (room temperature) |
| Vibration | Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis |
| Electrostatic Discharge (ESD) | +/-20kV air discharge, +/-10kV contact discharge, +/-10kVdc indirect discharge |
Software Compatibility
| TekSpeech Pro 4, Android EMDK |
Recommended Services
| Zebra OneCare |
Warranty
| HS2100: Subject to the terms of Zebra’s hardware warranty statement, the HS2100 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: HS3100: Subject to the terms of Zebra’s hardware warranty statement, the HS3100 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: |
Footnotes
