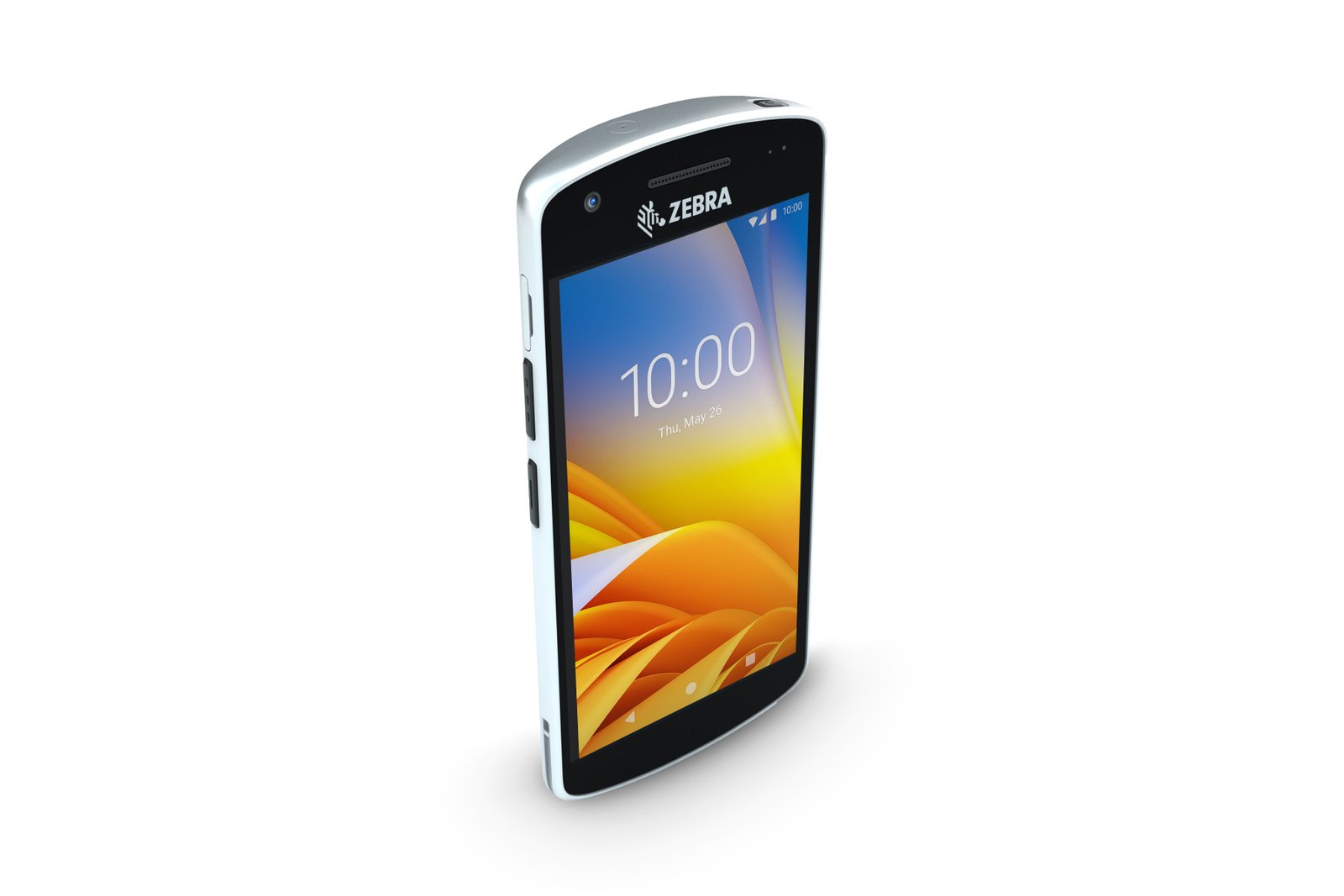

EC50/EC55 Enterprise Computer
Product Category : Mobile ComputersA New Category of Individually Assigned EC50/EC55 Enterprise Mobile Computers
Maximise personal productivity with smartphone-style devices that are all business.
Models: EC50, EC55
Specifications
Physical Characteristics
|
Dimensions |
With standard battery: With extended battery: |
| Weight | 6.1 oz./173 g to 6.46 oz./183 g (SKU dependent with standard battery) |
| Display | 5 in.; HD (720x1280) |
| Imager Window | Corning® Gorilla® Glass |
| Touch Panel | Corning® Gorilla® Glass; capacitive touch panel; multi-touch |
| Backlight | 450 NITS, LED |
| Power | Standard battery: 3060 mAh Extended battery: 4180 mAh Charge times: 0 to ~25% in ~15 minutes; 0 to ~90% in less than two hours |
| Expansion Slot | One 128 GB micro SD slot |
| SIM Slots | EC55 only: 1x Nano SIM, 1x e-SIM (optional) |
| Network Connections | WWAN; WiFi, Ethernet cradle |
| Notifications | Audible tone; multi-color LEDs; vibration |
| Keypad | On-screen keypad and enterprise keyboard |
| Voice and Audio | 1 watt speaker, receiver, PTT, voice support, 3 digital microphones, USB Type-C headset support |
| Buttons | Programmable; scan on each side; volume up/down; power; push-to-talk (PTT)3 |
| Interface Ports | Bottom USB 2.0 OTG - host/client (Type-C), SKU dependent: 0, 2, or 8 pin rear connection |
Performance Characteristics
| CPU | Qualcomm SD660, 2.2 GHz Octa-core |
| Operating System | EC50: Upgradeable to Android 14 EC55: Upgradeable to Android 14 |
| Memory (RAM/Flash) | 3 GB/32 GB; 4 GB/64 GB |
User Environment
| Operating Temp. | 14° F to 122° F/-10° C to +50° C |
| Storage Temp. | -40° F to 158° F/-40° C to +70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | 4 ft./1.2 m per MIL-STD-810G. With protective boot: 5 ft./1.5 m per MIL-STD-810G to concrete across operating temperature range |
| Tumble Specification |
300 1.6 ft./0.5 meter tumbles at room temperature without protective boot 500 1.6 ft./0.5 meter tumbles at room temperature with protective boot |
| Sealing | IP67 |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
| Electrostatic Discharge (ESD) |
+/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge |
Interactive Sensor Technology (IST)
| Light Sensor | Automatically adjusts display backlight brightness |
| Magnetometer | EC55 only: e-Compass |
| Motion Sensor | 3-axis gyroscope, 3-axis accelerometer |
| Proximity Sensor | Automatically disables touch panel and turns off display in Handset mode (voice calls) |
Data Capture
| Scanning | SE4100; 1D/2D omnidirectional imager |
| Camera | Front — 5 MP fixed focus; f/2.0 aperture Rear — 13 MP autofocus; f/2.0 aperture; flash LED |
| NFC | Integrated; High RF output power; MIFARE, ISO 14443 A&B, FeliCa , ISO 15693 and NFC Forum supported cards |
Wireless WAN, Data and Voice Communications
| WAN Radio Frequency Band (EC55 only) |
LTE Category 11 EC55 Rest of World: EC55 North America: EC55 China: |
| GPS (EC55 only) |
GPS with A-GPS: Glonass; BeiDou; Galileo |
Wireless LAN
|
Radio |
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc; Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO; soft AP |
| Data Rates | 5 GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4 GHz: 802.11b/g/n — up to 300 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz) Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP.EAP-PWD |
| Certifications | Wi-Fi™ certified |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r; OKC |
| Multimedia | Wi-Fi Multimedia™ (WMM) and WMM-PS |
Wireless PAN
|
Bluetooth |
Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE); secondary Bluetooth BLE beacon for finding lost (powered off) devices |
Environmental Compliance
| • RoHS Directive 2011/65/EU; Amendment 2015/863 • REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit Mobility DNA™ Professional Integrated Solutions |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the EC50/EC55 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, go to: |
Recommended Services
|
Zebra OneCare® Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support. Zebra VisibilityIQTM Services: Improve device value with Zebra’s optional VisibilityIQ Services. VisibilityIQ gives the data-driven, actionable insight to get the most from your devices, workers and daily tasks. VisibilityIQ Foresight aggregates big data onto a single, color-coded, cloud-based pane of glass, translating it into actionable insight to streamline workflow. VisibilityIQ DNA provides a view into key DNA tools, and VisibilityIQ OneCare cloud-based dashboard offers visibility into repairs, tech support, software security status and more. |
Footnotes
|
1. LifeGuard for Android is included with every Zebra OneCare support agreement. Some features, such as Over-the-Air remote updates and update status reports are available through a supported EMM. 2. Total Cost of Ownership Models for Line of Business Mobile Solutions, Enterprise Mobility, VDC Research Group, December 2018 3. Typically used for PTT communications. Where regulatory restrictions exist, button is configurable for use with other applications. 4. Based upon typical user profiles. For details related to Common Criteria support, please visit: |
Mobility DNA
| Mobility DNA solutions help you get more value out of our mobile computers by adding functionality, as well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features for our mobile devices, please visit: |
| Mobility DNA is available on Android only. Features may vary by model and a Support Contract may be required. To learn what solutions are supported, please visit: |
