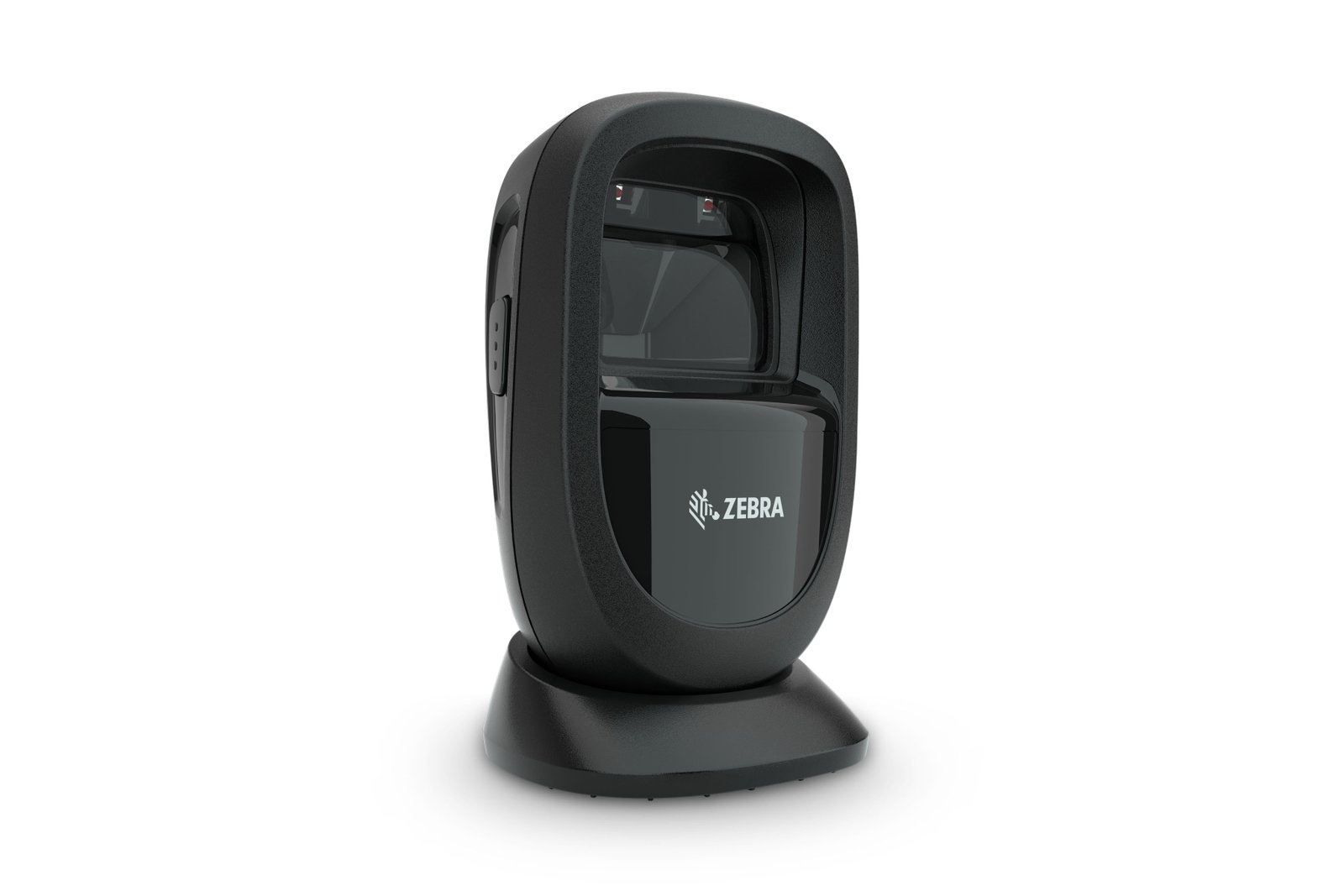

DS9300 Series 1D/2D Presentation Scanner
Product Category : Barcode Scanners
The Little Presentation Scanner With Big Functionality
The DS9300 Series fits anywhere, scans everything, and is built for all-day reliability. With the ability to scan challenging barcodes at the point of sale, you get unmatched scanning performance along with a small footprint design that is built to handle everyday drops, bumps, and spills.
Specifications
Physical Characteristics
| Dimensions | 5.7 in. H x 3.4 in. W x 3.3 in. D 14.5 cm. H x 8.6 cm. W x 8.3 cm. D |
| Weight | 11.2 oz. / 318.0 g |
| Input Voltage Range | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Operating Current at Nominal Voltage (5.0V) | Presentation mode: 335mA Trigger mode: 350mA |
| Standby Current (Idle) at Nominal Voltage (5.0V) | Presentation mode: 135mA Trigger mode: 75mA |
| Color | Alpine White, Midnight Black |
| Supported Host Interfaces |
USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| TAA Compliance | Trade Agreement Act Compliant (optional on select configurations) |
| Electronic Article Surveillance | Compatible with Checkpoint EAS deactivation system |
| User Indicators | Good decode LEDs, rear view LEDs, beeper (Adjustable tone and volume) |
Performance Characteristics
| Swipe Speed (Presentation) | Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode |
| Light Source | Aiming pattern: circular 617 nm amber LED |
| Illumination | 660 nm Hyper Red LED |
| Imager Field of View | 52° H x 33° V nominal |
| Image Sensor | 1280 x 800 pixels |
| Minimum Print Contrast | 15% |
| Skew Tolerance | +/-60° |
| Pitch Tolerance | +/-60° |
| Roll Tolerance | 360° |
Imaging Characteristics
| Graphics Format Support | Images can be exported as bitmap, JPEG or TIFF |
| Image Quality | 109 PPI on a 4.1 in. x 5.8 in./A6 sized document |
User Environment
| Operating Temperature | 32.0° F to 122.0° F / 0.0° C to 50.0° C |
| Storage Temperature | -40.0° F to 158.0° F / -40.0° C to 70.0° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete |
| Tumble Specification | Designed to withstand 1,000 tumbles in 1.5 ft. /0.5 m tumbler |
| Environmental Sealing | IP52 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect |
| Ambient Light Immunity | 0 to 10,000 foot-candles/0 to 107,700 Lux |
Regulatory
| Environmental | EN 50581:2012 RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000 REACH 1907/2006 |
| Electrical Safety | IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015 UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. |
| LED Safety | IEC 62471:2006 (Ed.1.0) EN 62471:2008 (LED) |
| EMI/RFI | FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
Accessories
| Multi-mount bracket, locking-mount bracket |
Symbol Decode Capability1
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, securPharm, DotCode, Dotted DataMatrix |
| OCR | OCR-A, OCR-B, MICR, US currency |
| Digimarc | Available on specific models only |
| Minimum Element Resolution | Code 39: 3 mil; Code 128: 3 mil; Data Matrix: 5 mil; QR Code: 5 mil |
Decode Ranges (Typical)2
| Symbology/Resolution | Near/Far |
| Code 39: 3 mil | 0 in./0 cm — 2.5 in./6.35 cm |
| Code 39: 5 mil | 0 in./0 cm — 5.0 in./12.7 cm |
| Code 39: 20 mil | 0 in./0 cm — 11.0 in./27.9 cm |
| Code 128: 3 mil | 0 in./0 cm — 2.0 in./5.1 cm |
| Code 128: 5 mil | 0 in./0 cm — 4.0 in./10.2 cm |
| PDF 417: 6.7 mil | 0 in./0 cm — 4.0 in./10.2 cm |
| UPC: 13 mil (100%) | 0 in./0 cm — 8.8 in./22.4 cm |
| Data Matrix: 10 mil | 0 in./0 cm — 4.5 in. /11.4 cm |
| QR: 20 mil | 0 in./0 cm — 7.5 in./19.1 cm |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the DS9300 Series is warranted against defects in workmanship and materials for a period of 3 (three) years from the date of shipment. Complete Zebra hardware product warranty statement: |
Recommended Services
| Zebra OneCare Select; Zebra OneCare Essential |
Footnotes
|
1. Refer to Product Reference Guide for complete list of symbologies. |
DataCapture DNA
| DataCapture DNA is a suite of highly intelligent firmware, software, utilities and apps exclusively engineered to add functionality and simplify the deployment and management of Zebra scanners. For more information about DataCapture DNA and its applications, please visit |
