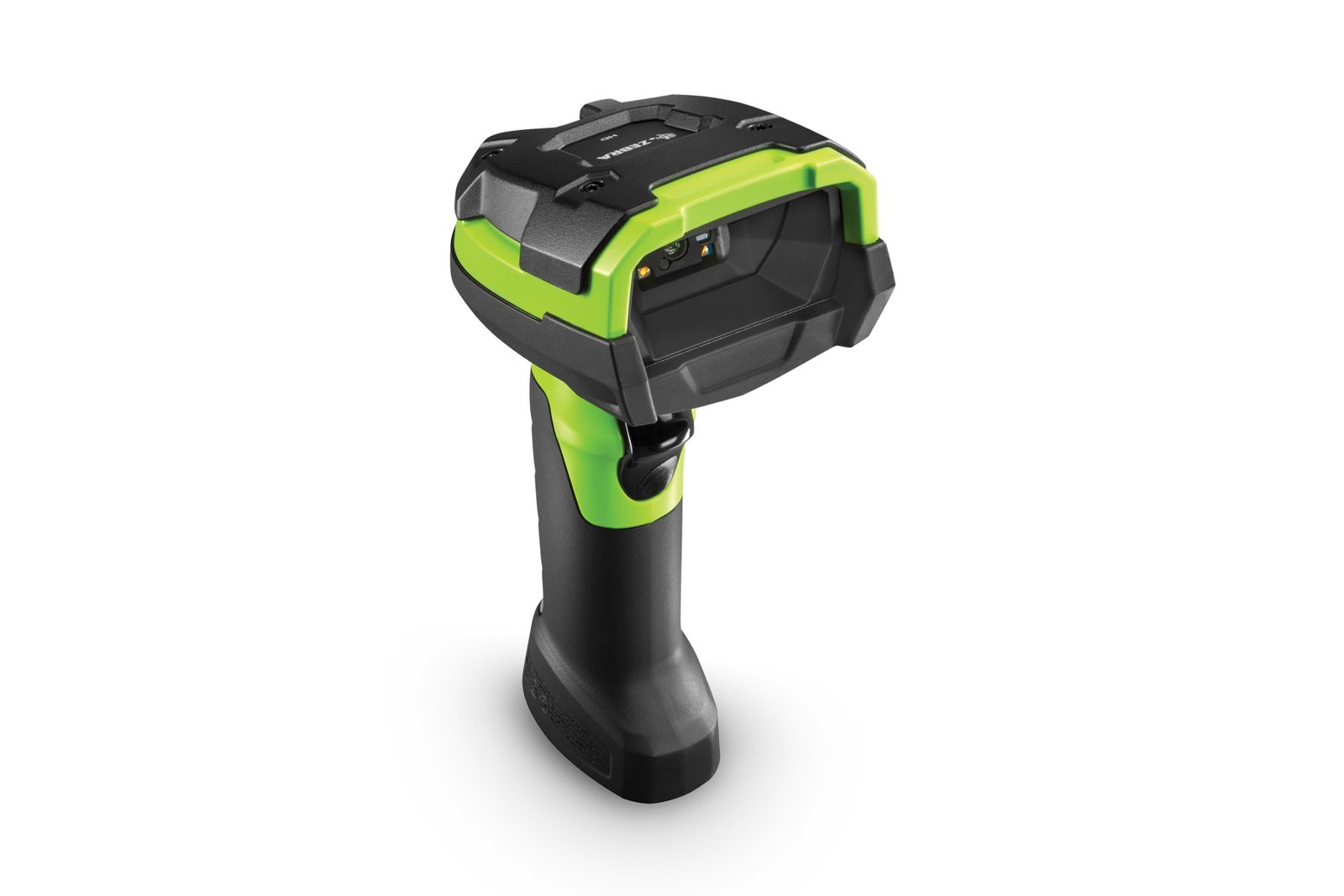

DS3600 Series Ultra-Rugged Barcode Scanners

Dimensions

Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
18.5 cm H x 7.6 cm W x 13.2 cm D
Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
18.5 cm H x 7.6 cm W x 14.2 cm D

Corded: 10.76 oz./305 g
Cordless: 14.34 oz./407 g

Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max.

Supported Host
Interfaces

USB, RS232, Keyboard Wedge
Industrial Ethernet: EtherNet/IP, Profinet, Modbus
TCP & Std TCP/IP

PowerPrecision+ 3100 mAh Li-Ion rechargeable battery

Skew: ± 60°
Pitch: ± 60°
Roll: ± 360°

Code 39, Code 128, Code 93, Codabar/NW7, Code
11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5,
GS1 DataBar, Base 32 (Italian Pharma)

PDF417, Micro PDF417, Composite Codes, TLC-39,
Aztec, DataMatrix, MaxiCode, QR Code, Micro QR,
Chinese Sensible (Han Xin), Postal Codes

Corded: -22° F to 122° F/-30° C to 50° C
Cordless: -4° F to 122° F/-20° C to 50° C

DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C

Scanner: IP65 and IP68 per applicable IEC sealing specifications
FLB cradle: IP65

Per EN61000-4-2, ±25 KV air discharge, ±10 KV
direct discharge, ±10 KV indirect discharge

Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit


Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit


Scanner Management Service (SMS)

Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles

3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
1 Mbit/s (0.27 Mbit/s) for Low Energy

Direct line of sight in open air: Class 1: Minimum
300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

Symbology/Resolution

Environmental

EU Safety: EN 60950-1: 2006 + A11: 2009 + A1:
2010 + A12: 2011 + AC 2011 + A2: 2013
International Safety: IEC 60950-1: 2005 + A1:
2009 + A2: 2013
US/Canada Safety: UL 60950-1, second edition,
CAN/CSA-C22.2 No. 60950-1-07

International LED Safety: IEC 62471: 2006 (Ed.1.0);
EN 62471: 2008 (LED)

IT Emissions: EN 55022: 2010/AC: 2011 (Class B)
IT Immunity: EN 55024: 2010
Heavy Industrial: EN 61000-6-2: 2005/AC:2005
Harmonic Current Emissions: EN 61000-3-2: 2006
+ A1: 2009 + A2: 2009 (Class B)
Voltage Fluctuation and Flicker:
EN 61000-3-3: 2013
Medical Electrical Equipment: EN 60601-1-2:
2007/AC: 2010, IEC 60601-1-2: 2007 (Modified)
Radio Frequency Devices: 47 CFR Part 15, Subpart
B, Class B
Digital Apparatus: ICES-003 Issue 5, Class B

Subject to the terms of Zebra’s hardware warranty statement, the DS3608-SR/DS3678-SR is warranted against defects in workmanship and materials for a period of: Scanner and Cradle: thirty-six (36) months, Battery: twelve (12) months from the date of shipment. For complete warranty statement, go to:


Zebra OneCare™ Select; Zebra OneCare Essential

1. Heated scanner holder accessory recommended to reduce condensation on the outside of scan window when moving in and out of freezers.
2. Refer to Product Reference Guide for complete list of symbologies.
Specifications are subject to change without notice.
3. Printing resolution, contrast, and ambient light dependent.

For more information about DataCapture DNA and its applications, please visit
